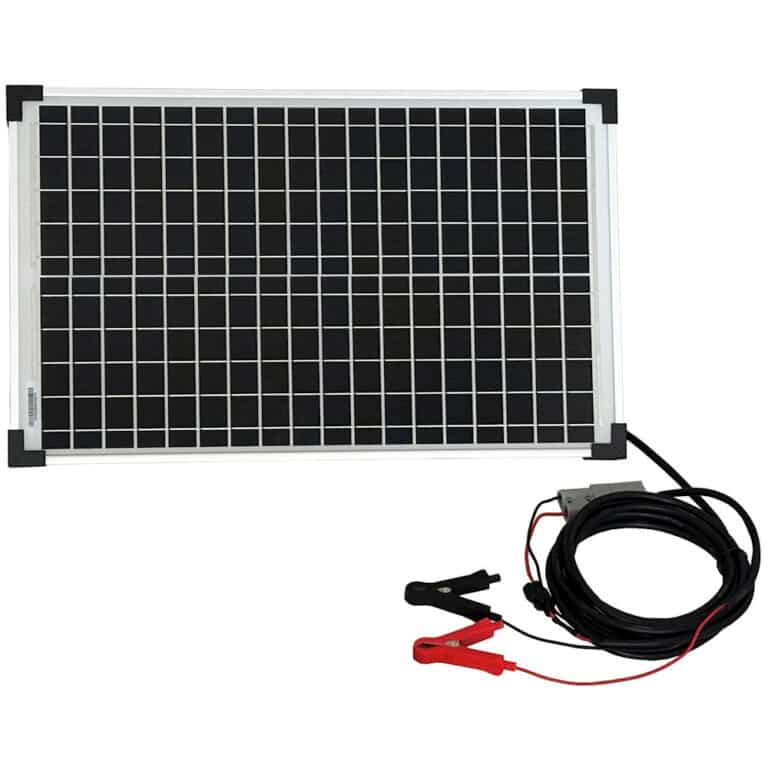

Curtech 35W Monocrystalline Solar Panel Kit

Keep your batteries maintained wherever your adventures take you with the Curtech 35W Monocrystalline Solar Panel Kit.

Designed for reliable 12V battery maintenance, this compact solar solution is ideal for caravans, camper trailers, motorhomes, 4WDs and equipment stored for extended periods.

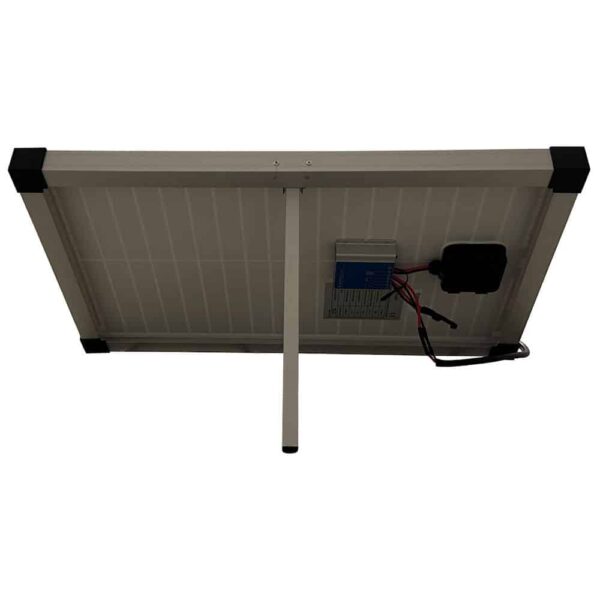

Built with a strong anodised aluminium frame and toughened glass, the panel is designed for durability in outdoor environments. Protective plastic corners provide additional protection, while the adjustable support leg allows you to position the panel towards the sun.

The included waterproof 10A solar regulator helps manage battery charging, and the 4.5m fused connection lead offers flexible setup using either an Anderson-style connector or battery clips.

Key Features

• 35W monocrystalline solar panel
• Designed for maintaining 12V batteries
• Waterproof 10A solar charge regulator included
• Durable anodised aluminium frame
• Toughened glass panel construction
• Protective plastic corner guards
• Adjustable support leg for positioning
• 4.5m fused battery connection lead
• Anderson-style connector and battery clips
• Mounting holes for permanent installation

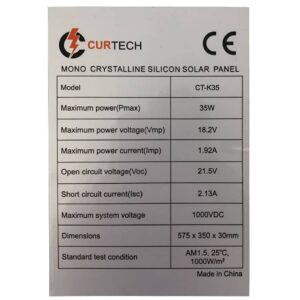

Technical Specifications

• Maximum Power (Pmax): 35W
• Maximum Power Voltage (Vmp): 18.2V
• Maximum Power Current (Imp): 1.92A
• Open Circuit Voltage (Voc): 21.5V
• Short Circuit Current (Isc): 2.13A
• Maximum System Voltage: 1000V DC
• Solar Regulator: 12V 10A
• Dimensions: 575 × 350 × 30mm
• Weight: 2.9kg

Ideal Applications

Perfect for maintaining batteries in caravans, camper trailers, motorhomes, 4WDs, farm machinery, ride-on mowers and other 12V battery-powered equipment.

Important Information

This kit is primarily designed for battery maintenance rather than running high-power appliances. Solar charging performance varies with sunlight, weather conditions and panel positioning.

Check battery compatibility and charging requirements before use.
