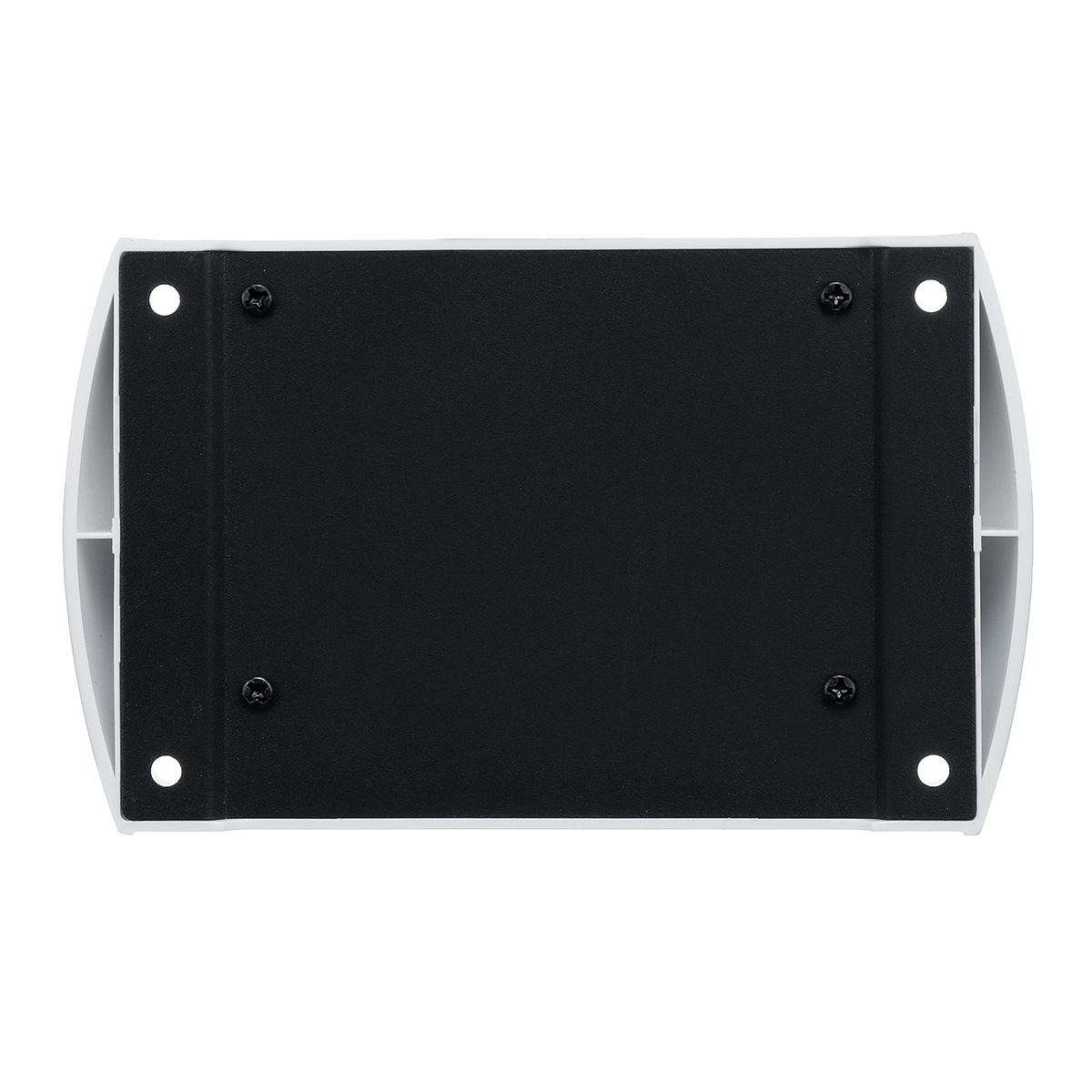

20A 12V/24V Solar Charge Controller / Regulator
$35.00
Compact 20A PWM solar charge controller for 12V and 24V systems, featuring an LCD display, automatic system-voltage detection and built-in battery protection. Ideal for smaller caravan, camping and off-grid solar setups.
Keep your solar setup charging reliably with this compact 20A PWM Solar Charge Controller, designed for both 12V and 24V battery systems.
The controller automatically identifies system voltage and features an easy-to-read LCD interface for straightforward setup and monitoring.
Built-in protection includes battery low-voltage disconnect, overcurrent protection, reverse-discharge protection and reverse-connection protection.
Key Features
- 20A rated charging current
- 12V/24V automatic system detection
- Intelligent PWM charging
- LCD display
- Adjustable charge and discharge parameters
- Low-voltage disconnect
- Overcurrent protection
- Reverse-discharge protection
- Reverse-polarity protection
- Suitable for sealed, GEL and flooded batteries
Specifications
- Maximum solar input: 50V DC
- Maximum solar power: 260W @ 12V / 520W @ 24V
- Charging current: 20A
- Charge type: PWM
- IP rating: IP32
- Dimensions: 137 × 85 × 32mm
- Weight: Approx. 230g
- Operating temperature: -20°C to +55°C
A simple and affordable controller for smaller Outback Offgrid solar systems.
